Battery Operated Gas Calibration Equipment Offering Rapid Deployment and Calibration Support for Chemical Warfare Agent Detection Systems
Product Description:

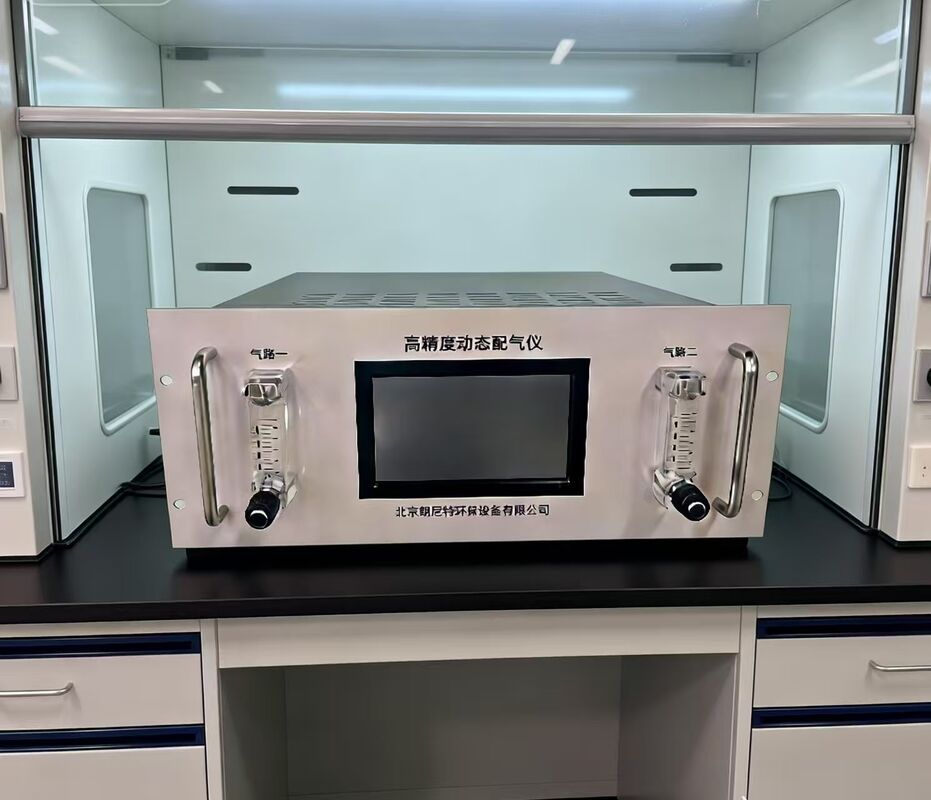

MR-DF2 high-precision dynamic gas distribution instrument configured for military applications provides specialized gas calibration capabilities designed for defense operations and CBRN (Chemical, Biological, Radiological, Nuclear) defense systems. This ruggedized instrument is engineered to generate precise standard gas mixtures for calibrating chemical warfare agent detectors, toxic industrial chemical monitors, and battlefield atmospheric analysis equipment.
The system incorporates military-grade construction meeting stringent defense standards, with enhanced durability for deployment in forward operating bases, mobile command centers, and field laboratories. The MR-DF2 military variant features specialized detection profiles for chemical warfare agents including nerve agents (Sarin, Soman, VX), blister agents (Mustard Gas, Lewisite), blood agents, and choking agents, providing essential calibration support for military CBRN defense operations. Its portable design with battery operation capability enables rapid deployment in tactical environments, while the secure communication interfaces allow integration with military command and control systems for coordinated defense operations.![]()
Features:
· Military-standard rugged construction meeting MIL-STD-810G requirements
· Specialized calibration profiles for chemical warfare agents
· Battery-powered operation for field deployment
· EMP-hardened electronics for electromagnetic pulse protection
· Secure encrypted communication interfaces
· Rapid deployment capability within 15 minutes
· Multi-gas mixing for complex CBRN agent simulation
· Integration with military CBRN detection systems
· Automatic threat classification calibration support
· GPS-enabled location tracking for field operations
· Tamper-resistant design with anti-tamper mechanisms
· Compliance with NATO STANAG standards for CBRN equipment
Technical Parameters:
| Parameter | Specification |
| Mass Flow Controller Range | 0-1000ml/min to 0-5000ml/min (military spec) |
| Flow Accuracy | ≤1.0% (≤0.5% for CWA calibration) |
| Flow Distribution Uncertainty | ≤0.6% |
| Flow Repeatability | ≤0.2% |
| Dilution Factor | ≤100 (standard), up to 1000 (custom) |
| Turndown Ratio | 200:1 (standard), up to 500:1 (custom) |
| Maximum Ratio | 4000:1 (standard), up to 20000:1 (custom) |
| Input Pressure | 100Kpa~700Kpa (customizable) |
| Operating Temperature | -40℃~+60℃ (extended military range) |
| Operating Humidity | 5-100%RH |
| Equipment Pressure Resistance | <2Mpa |
| Working Pressure Difference | 0.05Mpa~0.5Mpa |
| Power Supply | 110VAC~240VAC/50Hz, 24VDC military battery |
| Battery Life | 8-12 hours continuous operation |
Applications:
· Chemical warfare agent detector calibration
· Military CBRN defense system support
· Forward operating base atmospheric monitoring calibration
· Battlefield gas detection equipment verification
· Military training exercise simulation gas generation
· Decontamination zone monitoring system calibration
· Naval vessel chemical detection support
· Military facility CBRN warning system calibration
· Tactical reconnaissance equipment calibration
· Military disaster response operations support
· Chemical weapon identification system verification
· Military research and development laboratory applications
