Selecting the DOP-110WS Repeater - Cut-Out, Power Tolerance and Language Coverage

Product Details:

Place of Origin:	CHINA
Brand Name:	CSSC
Certification:	CCS, BV, LR, SIL3

Detail Information

Place of Origin:

CHINA

Brand Name:

CSSC

Certification:

CCS, BV, LR, SIL3

Highlight:

High Light

Highlight:

DOP-110WS repeater gas detector

cut-out gas detector instrument

power tolerance gas detector

Trading Information

Minimum Order Quantity:

10 sets

Delivery Time:

5-8 work days

Supply Ability:

1000 sets/month

Product Description

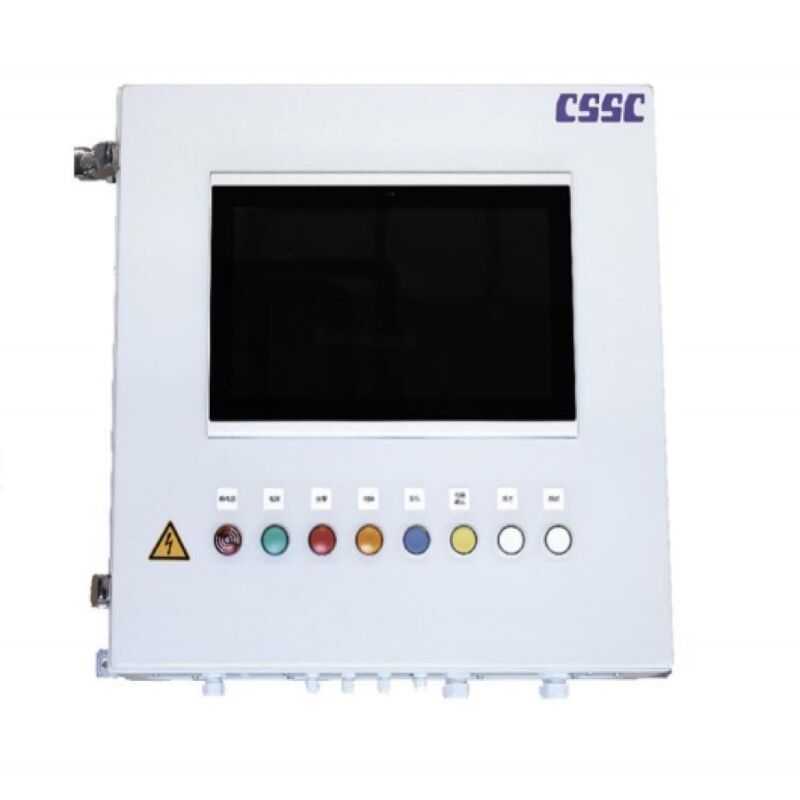

DOP-110WS Repeater Overview

The DOP-110WS is a practical HMI device featuring a 10.1-inch screen with 1024 x 600 resolution, designed for reliable performance in industrial and marine environments.

Key Specifications

Dimensions	270 x 180.9 x 47.25 mm
Panel Cut-out	255 x 170 mm
Power Supply	DC 24 V (-15% to +15% tolerance)
Maximum Power	11 W
Operating Temperature	0 to 50°C
Operating Humidity	10% to 90% RH
Front Panel Rating	IP65 / NEMA 4

Technical Features

10.1-inch display with 1024 x 600 resolution
ARM Cortex-A8 CPU for reliable performance
Three COM ports (RS-232, RS-485, RS-422)
Ethernet connectivity for flexible integration
16-language support with pre-loaded language packs
Supports up to 4 repeaters per GAC-M10 system

Selection & Installation Guide

Proper installation ensures optimal performance and maintains the IP65/NEMA 4 front panel rating:

Verify panel cut-out dimensions (255 x 170 mm) before cutting
Ensure proper sealing of cut-out to maintain environmental rating
Provide stable DC 24V power within specified tolerance range
Select appropriate interface based on host system requirements
Maintain operating environment within specified temperature and humidity ranges
Configure communication parameters during commissioning

System Integration

The DOP-110WS repeater connects seamlessly to gas alarm control cabinets or GAC-M10 circulating-sampling cabinets via RS-485 or Ethernet, providing local status display and parameter setting capabilities. Multiple repeaters can be deployed across different locations while being controlled from a single system.

Applications

Ideal for distributed HMI applications in:

Shipboard control rooms and bridge consoles
Offshore platform central control rooms
Industrial process control rooms
Gas detection status monitoring systems

Certifications & Approvals

The DOP-110WS meets rigorous international standards with the following certifications:

CCS Type Approval Certificate (China Classification Society)
BV Type Approval Certificate (Bureau Veritas, Certificate No. 81499/A0 BV)
LR Type Approval Certificate (Lloyd's Register)
SIL3 Functional Safety Certification
CCS Cyber Security Certificate

Global Support Network

Comprehensive service support available through centers in China, Germany, Panama, Cyprus, UAE, Northern Europe, UK, Ireland, Singapore, and Taiwan, providing fast on-site assistance to shipyards and ship-owners worldwide.
