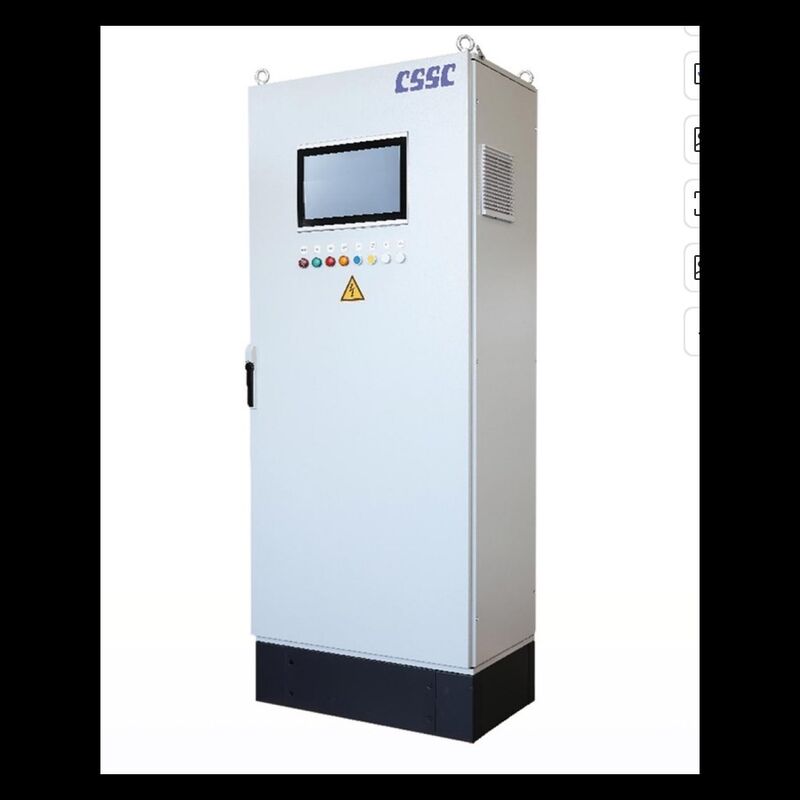

Gas Alarm Control Cabinet System Overview
The Gas Alarm Control Cabinet defines the architecture of shipboard gas detection systems, determining detector capacity, zone configuration, integration with vessel PLC, DCS and fire systems, and spare parts availability. This engineering-grade solution serves as a fully localized replacement for imported shipboard methane gas safety detection equipment.
System Specification Challenges
For shipyards and vessel owners specifying gas detection systems, the cabinet selection represents a long-term commitment carried throughout the vessel's operational life. Imported cabinets often involve extended lead times, uncertain spare parts availability, and closed integration protocols. Choosing a localized cabinet with open interfaces significantly reduces delivery timelines and protects vessel availability during service.
System Sizing Guidelines
Begin cabinet specification by analyzing the detector schedule: account for every monitoring point, organize them into logical zones, and ensure the total remains within the 112-channel capacity while allowing margin for future expansion. The distributed control panel supports multi-zone deployment across cargo, machinery, and accommodation areas.
Installation Planning
Pre-determine required vessel interfaces—PLC, DCS, fire-protection systems, and vessel alarm monitoring—during the cabinet design phase, as adding protocol support later incurs significantly higher costs. Position the cabinet where duty officers can easily see and hear alarms, ensure adequate service access from front and rear, and verify cable routing early since transmission distance correlates with cable cross-section requirements.
System Integration Architecture
The cabinet serves as the central hub receiving inputs from detectors, sampling cabinets, repeaters, and area audible/visual alarms. From this central point, the system controls ventilation activation, fire-suppression triggering, and data exchange with PLC, DCS, and vessel alarm monitoring systems.
System Capabilities
- Up to 112 channels for comprehensive vessel monitoring
- Multi-zone deployment across vessel compartments
- Engineering-grade construction with anti-corrosion and anti-vibration reliability
- Automatic fan activation and fire-suppression system linkage
- Localized supply chain with domestic manufacturing for secure spare parts availability
Certifications & Approvals
CCS Type Approval Certificate (China Classification Society)
BV Type Approval Certificate (Bureau Veritas, Certificate No. 81499/A0 BV)
LR Type Approval Certificate (Lloyd's Register)
SIL3 Functional Safety Certification
Explosion-Proof Conformity Certificate
CCS Cyber Security Certificate
Global Service Network
Our comprehensive service network spans strategic maritime regions worldwide, providing rapid on-site support to shipyards and vessel operators.
China
Germany
Panama
Cyprus
UAE
Northern Europe
UK
Ireland
Singapore
Taiwan
